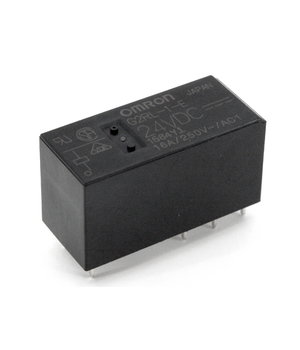

RELAY 24V 400mW, 8A/250VAC 8A/24VDC, G2RL-2 OMRON, (DPDT)
Code RLOG2L224- Manufacturer OMRON
- ID code G2RL-2 24VDC
- Weight 8.00g
E-shop price: 2,90 €
| Amount: | 5+ | 10+ |
| Price: | 2,64 | 2,33 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (5) | |
| Shop in Vilnius | Item available (9) | |
| Shop in Kaunas | Item available (11) | |
Item description
Contacts configuration: DPDT
Switched voltage: max. 300V DC, max. 440V AC
Mounting: PCB
Coil resistance: 1.44kΩ
Coil current: 16.7mA
Operate time: 15ms
Release time: 5ms
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Terminal pitch: 5mm

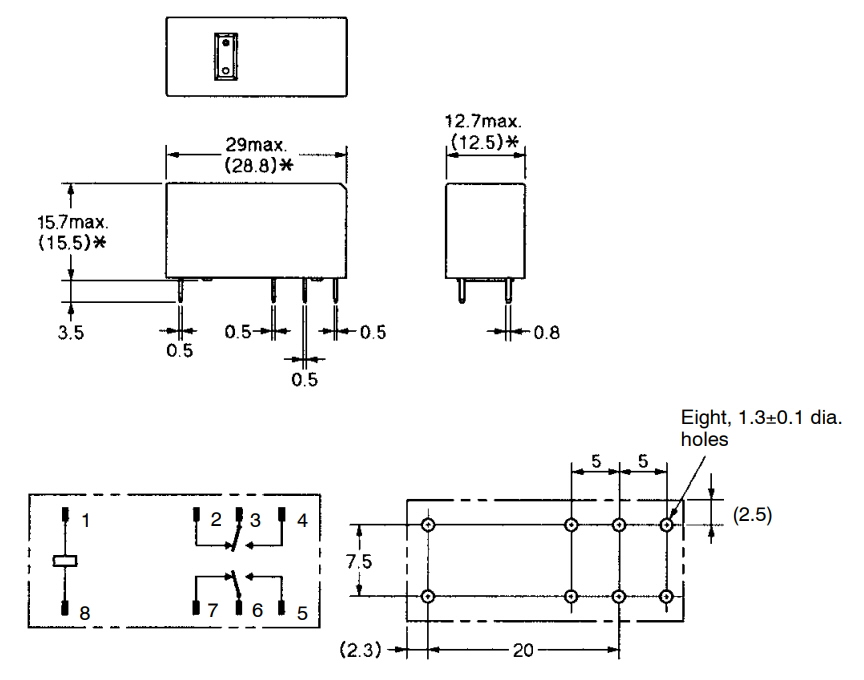

Body dimensions: 29x12.7x15.7mm
