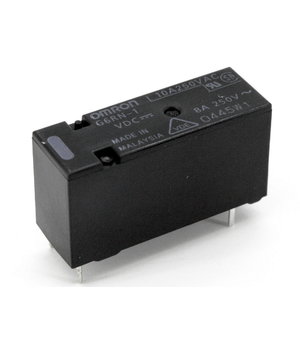

RELAY 12V 220mW, 8A/250VAC 5A/30VDC, G6RN-1 OMRON, (SPDT)
Code RLOG612- Manufacturer OMRON
- ID code G6RN-1 12VDC
- Weight 9.00g
E-shop price: 2,30 €
| Amount: | 5+ | 10+ |
| Price: | 2,12 | 2,03 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (10) | |
| Shop in Vilnius | Item available (7) | |
| Shop in Kaunas | Item available (8) | |
Description
Contacts configuration: SPDT
Switched voltage: max. 300V DC, max. 250V AC
Mounting: PCB
Coil resistance: 655Ω
Coil current: 18.3mA
Operate time: 15ms
Release time: 5ms
Coil power consumption: 220mW
Operating temperature: -40...85°C
Terminal pitch: 3.2mm

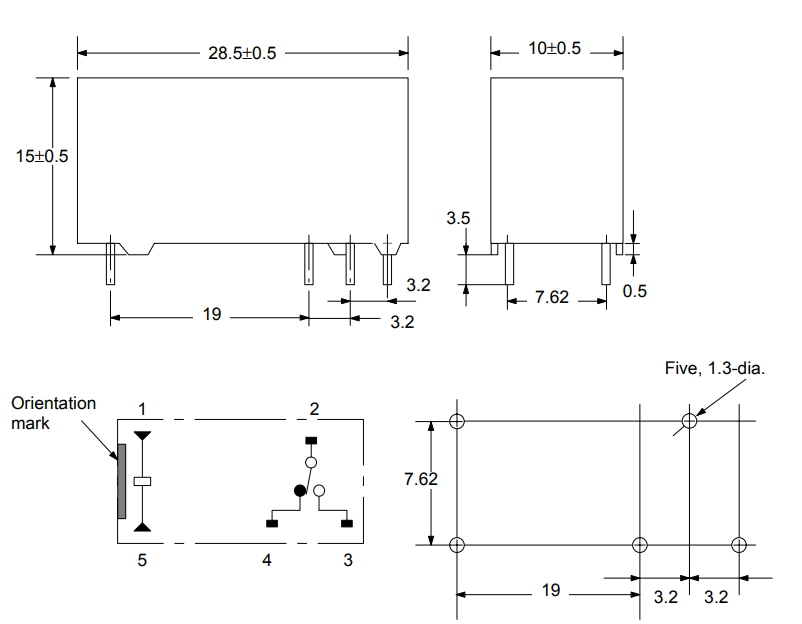

Body dimensions: 28.5x10x15mm
