RELAY SSR Solid-state 25A IN:80-250VAC OUT:AC24-380V SSR-25AA
Code RLSS2502- Weight 100.00g
E-shop price: 5,90 €
| Amount: | 5+ | 10+ |
| Price: | 5,25 | 5,04 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (3) | |
| Shop in Vilnius | Item available (3) | |
| Shop in Kaunas | Item available (2) | |
Item description
Small volume, small control power, non-contact, no sparks, no noise, no wear and long service life.
Main Application:
Industrial automation installment
Computer periphery connection
AC motor control
Automatic fire control and security system
Street light,signal light,traffic light,etc
Specification:
- AC Control AC
- Input voltage: 80-250VAC
- Output current:25A
- Control current:12mA
- Load voltage: 24-380VAC
- On-state voltage: ≤1.5V
- One-off Time: ≤10ms
- Off leakage Current: ≤4mA

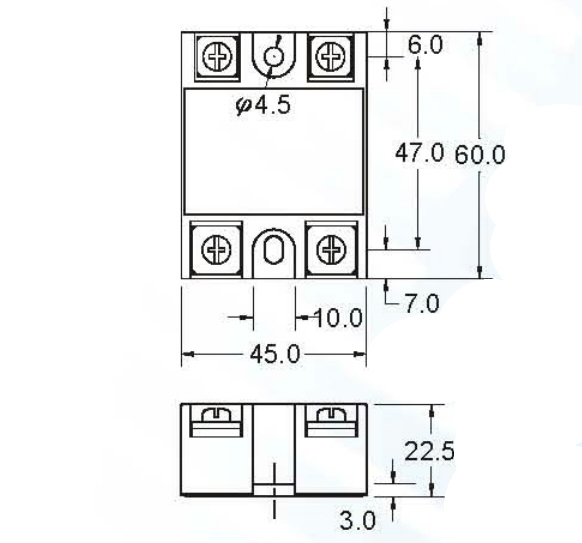

- Size: 60x45x23mm
