POTENTIOMETER 500R / 10 turns, 2W, ± 5% RPDxxx.jpg

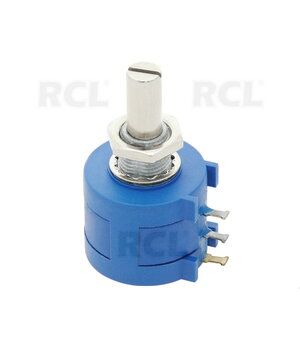

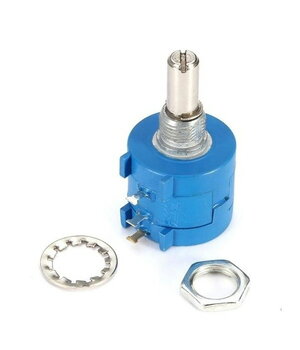

POTENTIOMETER 500R / 10 turns, 2W, ± 5%

Code RPD250
  • Weight 20.00g

E-shop price: 4,90

Amount: 3+ 5+
Price: 4,26 2,92
Minimum order: 1 Repeatability : 1

Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item available (3)
Shop in Kaunas Item available (2)

Item description


Multi-turn potentiometers are used in systems requiring fine-tuning: in machine tools, production lines, for spindle speed control, fine-tuning the power supply in the workshop, etc.

Technical data:

Potentiometer type: multi-turn
Axis diameter: 6.35 mm
Body dimensions: Ø22 x 18 mm
Track material: wire
Axis length: 13 mm
Potentiometer properties: accurate
Linearity tolerance: ± 0.25%
Operating temperature: -55...125°C
Axis surface: smooth
Axis material: metal
Mechanical service life: 250,000 cycles
Mounting thread: M9x0.75
