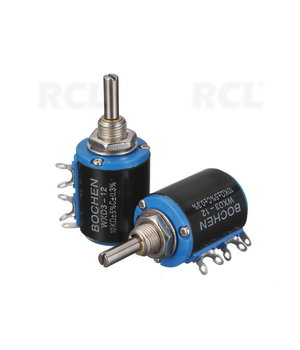

Potentiometer 1K 1W,  5 Ring Multi-circle Precision, Wire-wound, WXD3-12-1W RPDDXXX.jpg

Potentiometer 1K 1W, 5 Ring Multi-circle Precision, Wire-wound, WXD3-12-1W

Code RPDD310
  • Weight 20.00g

E-shop price: 4,90

Amount: 4+ 8+
Price: 4,26 2,99
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item available (2)
Shop in Kaunas Item is not available (0)

Description

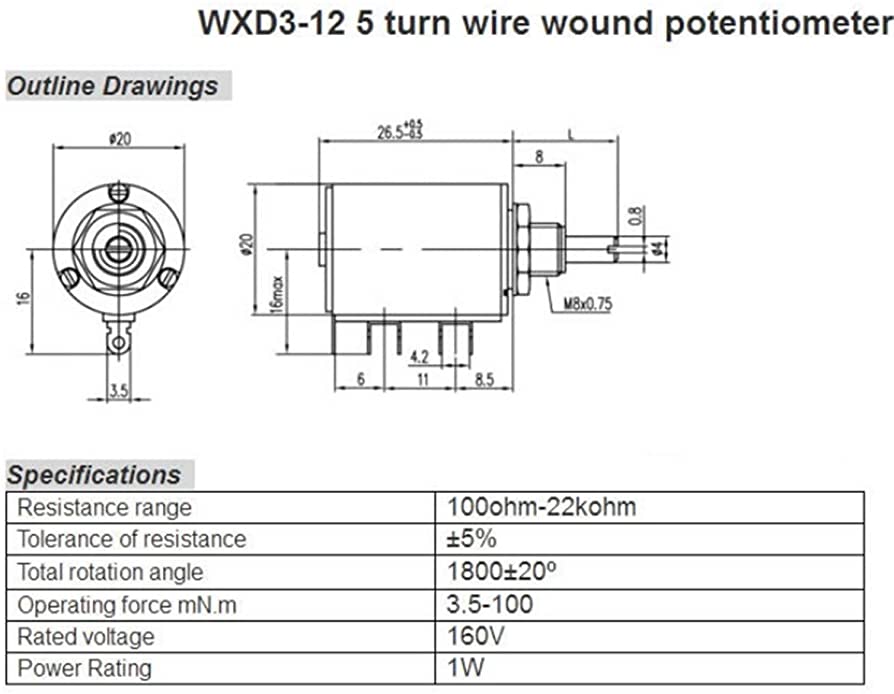

Drawing

Type: 5 (multi-turn)
Precise
Material: wirewound
Resistance adjustment: rotary
Resistance change: linear
Slip noise: 1 (V)
Voltage Rating:160V
Torque:3.5-100mN.m

Specification
