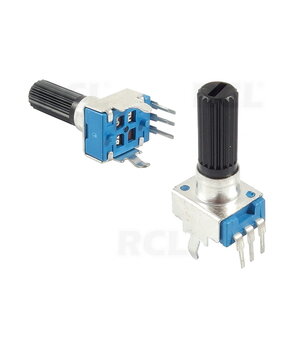

POTENTIOMETER mono linear 1kΩ plastic, 125mW
Code RPP310M/K- Weight 3.00g
E-shop price: 0,95 €
| Amount: | 10+ | 20+ |
| Price: | 0,86 | 0,76 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item available (1) | |
Description
Carbon mono potentiometer, soldered to the board
Maximum working voltage: 200V
Axle material: plastic
Shaft surface: ribbed
Shaft diameter: ø6mm
Axle length: 18mm
Body material: plastic
Case dimensions: 10.4 x 11.8 x 6.8mm
Mechanical rotation angle: 300°
Lead pitch: 2.54mm

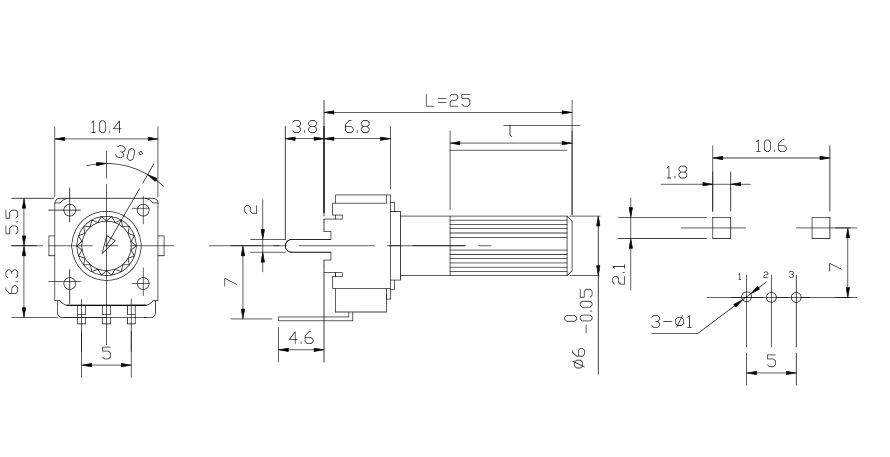

Other dimensions: see the drawing
