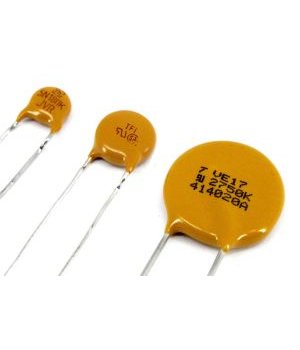

VARISTOR 250VAC 320VDC 390V 400A, ø5mm
Code RV3905- Weight 0.00g
E-shop price: 0,1500 €
| Amount: | 4+ |
| Price: | 0,1043 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (210) | |
| Shop in Vilnius | Item available (22) | |
| Shop in Kaunas | Item available (13) | |
Item description
• Used as voltage-dependent resistors (VDR's) to protect electronic devices
• They protect against overload build-up and protect valuable equipment from power surge damage
• Surge voltages are absorbed in the varistor
Selection Criteria
• The maximum operating voltage must be lower than the varistor voltage.
Material: Zinc Oxide (ZnO)
Storage Temperature: -40...+125°C
Operating Temperature, Max.: +85°C
Working Surface Temperature, Max.: +115°C
Response Time, Max.: 25ns
Voltage/Temperature Coefficient: -0,05%/°C
Insulation Resistance, Min. (500V): 1000MOh
