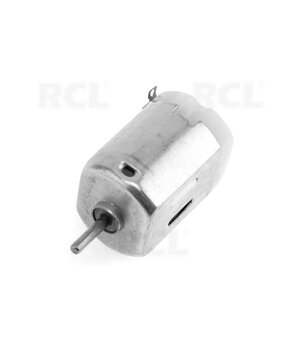

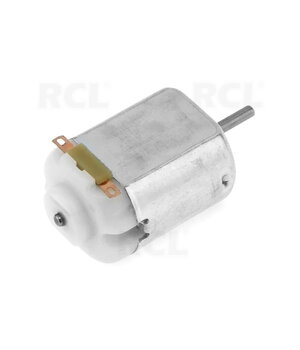

MOTOR 3..6V DC, axis 2x8mm, housing 20x25mm, 0.35-0.4A

Code SVU0301
  • Weight 16.00g

E-shop price: 1,20

Amount: 5+ 10+
Price: 1,02 0,48
1,03
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item is not available (0)
Shop in Kaunas Item is not available (0)

Item description

This is a standard '130 size' DC motor. It operates with a wider operating range than most toy motors: 3 to 6 VDC. Perfectly controlled with most motor controllers, Raspberry or Arduino.

Features:
Operating temperature: -10°C ~ +60°C
Nominal load: 10 g/cm
No-load current: 70 mA max
Speed without load: 9100 ±1800 rpm
Current with load: 400 mA max
Speed with load: 4500 ±1500 rpm
Initial torque: 20 g/cm
Boiler size: 25mm x 20mm x 15mm
Shaft size: 8mm x 2mm
