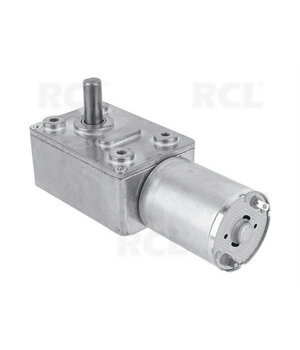

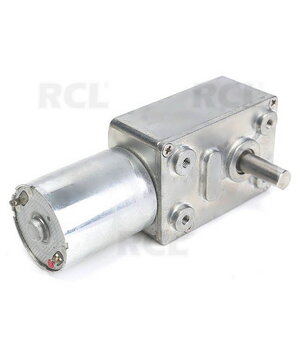

Gear Motor 18RPM, 12VDC 0.23A, 4.8kg/cm, Turbo Worm JGY370
Code SVUR02/18- Weight 150.00g
E-shop price: 14,90 €
| Amount: | 3+ | 6+ |
| Price: | 13,41 | 11,83 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (2) | |
| Shop in Vilnius | Item available (2) | |
| Shop in Kaunas | Item available (2) | |
Description
DC motor. Reverse the polarisation of the power supply to reverse the direction of rotation of the motor. The motor locks automatically when the power supply is cut off.
Features:
- Model: JGY370
- Rated voltage: 12V
- No-load speed: 18rpm
- No-load current: 45mA
- Speed with load: 15 rpm
- Load current: 230mA
- Load torque: 4.8Kg.cm
- Power: 1.7W
- Torque: 24Kg.cm
- Braking current: 1.5A
- Drive Ratio: 324:1
