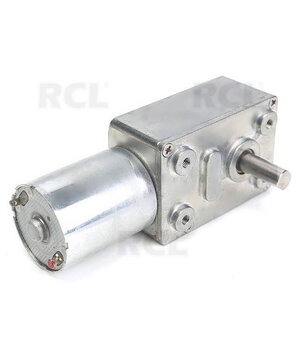

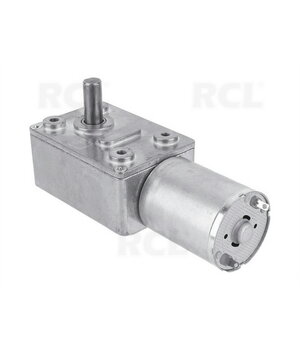

Gear Motor 90RPM, 12VDC 0.27A, 1.3kg/cm, Turbo Worm JGY370

Code SVUR02/90
  • Weight 160.00g

E-shop price: 14,90

Amount: 4+ 8+
Price: 13,41 10,81
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item available (1)
Shop in Kaunas Item is not available (0)

Item description

Drawing

DC motor. Reverse the polarisation of the power supply to reverse the direction of rotation of the motor. The motor locks automatically when the power supply is cut off.

Features:

  • Model: JGY370
  • Rated voltage: 12V
  • No-load speed: 90rpm
  • No-load current: 45mA
  • Load speed: 72rpm
  • Load current: 270mA
  • Load torque: 1.3Kg.cm
  • Power: 1.7W
  • Stall torque: 6Kg.cm
  • Stall current: 1.5A

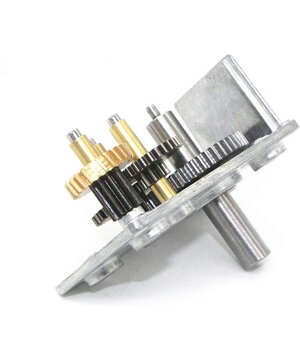

  • Gear ratio: 60:1

Specification
