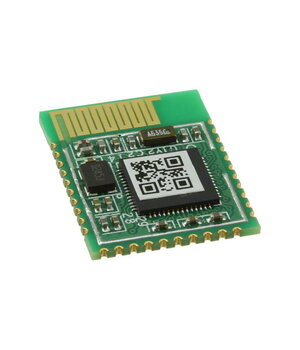

BLUETOOTH MODULE CYBLE-012012-10

📦 Product overview

CYBLE-012012-10 is an Infineon (formerly Cypress) EZ-BLE™ PRoC™ programmable Bluetooth® Low Energy module intended to be mounted on the end-product PCB as an SMT component. According to the manufacturer, this device is a cost-optimized platform for applications that can accommodate a larger module form factor.

This module belongs to the same hardware platform as CYBLE-012011-00, but CYBLE-012012-10 is described as a subset device: - it is not qualified with the Bluetooth SIG, - it does not include a QDID, - it does not have an RF metal shield on the top side of the module.

The manufacturer also states that CYBLE-012011-00 and CYBLE-012012-10 are pin-for-pin compatible.

---

⚙️ Key technical features

• Module type: programmable Bluetooth® Low Energy module
• Series: EZ-BLE™ PRoC™
• BLE silicon platform: PRoC™ BLE
• Bluetooth standard: operates to Bluetooth 4.1
• Bluetooth SIG qualification: No
• QDID: Not available
• Antenna type: integrated trace antenna
• Mounting/package: 31-SMT surface-mount module
• GPIO count: 23
• Operating temperature range: -40 °C to +85 °C
• Typical range: up to 30 m in direct line-of-sight, noise-free, obstacle-free conditions

---

🧠 Integrated resources and peripherals

Manufacturer-listed resources and embedded blocks include:

• Flash memory: 128 KB
• SRAM: 16 KB
• SCB blocks: 2
  (configurable as I²C, SPI, or UART)
• TCPWM blocks: 4
• 12-bit SAR ADC: Yes
• I²S interface: Yes
• CapSense®: Yes, up to 22 sensors
• LCD support: Yes
• PA / LNA: No
• UDB / Comparator / Opamp: not included on this module

---

📏 Mechanical parameters

• Dimensions: 14.5 × 19.2 × 1.6 mm
• Package: 31-SMT
• Bottom-side module connections: 31 pads / connections

The module is designed to be soldered directly onto a host PCB as an SMT component. The manufacturer recommends observing the RF keep-out and antenna layout requirements, especially avoiding metal directly below or above the antenna region for proper wireless performance.

---

🔌 Electrical and communication characteristics

Based on the manufacturer’s EZ-BLE PRoC documentation, this module uses the PRoC BLE platform and supports the typical communication and control capabilities of this family:

• Wireless technology: Bluetooth® Low Energy
• Frequency band: 2.4 GHz ISM
• Over-the-air data rate: 1 Mbps
• Control / serial interfaces: I²C, SPI, UART through configurable SCB blocks
• Programmable functionality: suitable for custom BLE application development

---

🏭 Design and integration notes

CYBLE-012012-10 is suitable for designs where lower system cost is important and a manufacturer-provided Bluetooth SIG qualification is not required. This makes the module relevant for applications where:

• certification strategy is handled at the product level,
• an RF top shield is not required,
• compatibility with the CYBLE-012011-00 footprint is important,
• a programmable BLE module with integrated antenna and essential peripherals is needed.

Because it is pin-for-pin compatible with CYBLE-012011-00, it can also be used in designs that need mechanical and electrical compatibility with the qualified variant of the same platform.

---

✅ Summary

CYBLE-012012-10 is a programmable Bluetooth Low Energy 4.1 module with an integrated trace antenna, 128 KB Flash, 16 KB SRAM, 23 GPIOs, 2 SCB blocks, 4 TCPWM blocks, 12-bit SAR ADC, I²S, and CapSense support. It operates over -40 °C to +85 °C, uses a 31-SMT package, and measures 14.5 × 19.2 × 1.6 mm. Compared with CYBLE-012011-00, this version is not Bluetooth SIG qualified, has no QDID, and does not include the RF metal shield.

---
