GARSIAKALBIS PJ K28WP 8Ω, 28x5.5mm, Visaton
Kodas GAVSPK28WP- Gam. ženkl. VISATON
- ID kodas 2909
- Svoris bruto 7.00g
Eshop kaina: 6,50 €
| Kiekis: | 2+ | 4+ |
| Kaina: | 6,18 | 5,98 |
| Prekės buvimo vietos: | ||
|---|---|---|
| Biuras/Centrinis sandėlis Kaune, Gaižiūnų 5A | Prekės neturime (0) | |
| Parduotuvė Vilniuje, Ukmergės g. 222 | Prekę turime (2) | |
| Parduotuvė Kaune, Savanorių pr. 241 | Prekę turime (2) | |
Prekės aprašymas

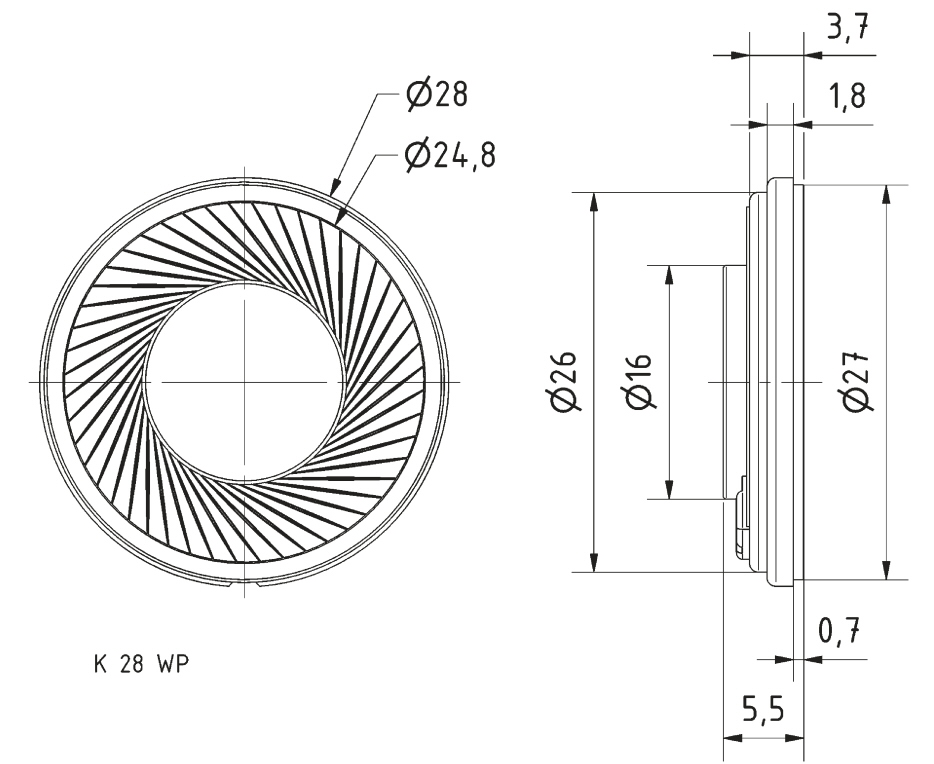

2.8 cm (1.1") miniature speaker with a plastic diaphragm (Mylar). Balanced frequency response and good voice reproduction. Particularly well suited to applications in very small devices.
Rated power 8 W
Opening angle (-6 dB) 149°/4000 Hz
Excursion limit +/−1,5 mm
Resonance frequency fs 250 Hz
Magnetic induction 1,2 T
Magnetic flux 160 µWb
Height of front pole-plate 2 mm
Voice coil diameter 14 mm
Height of winding 3,5 mm
Cutout diameter 61 mm
Net weight 0,2 kg
D.C. resistance Rdc 7,2 Ohm
Mechanical Q factor Qms 3,32
Electrical Q factor Qes 2,08
Total Q factor Qts 1,28
Equivalent volume Vas 0,3 l
Effective piston area Sd 22 cm²
Dynamically moved mass Mms 0,8 g
Force factor Bxl 2,1 Tm
Inductance of the voice coil L 0,6 mH
Temperature range −25 ... 100 °C
