GARSIAKALBIS ŽD TIW300 8Ω, Visaton
Kodas GAVSZTIW300- Gam. ženkl. VISATON
- ID kodas 1364
- Svoris bruto 9100.00g
Eshop kaina: 499,90 €
| Prekės buvimo vietos: | ||
|---|---|---|
| Biuras/Centrinis sandėlis Kaune, Gaižiūnų 5A | Prekės neturime (0) | |
| Parduotuvė Vilniuje, Ukmergės g. 222 | Prekės neturime (0) | |
| Parduotuvė Kaune, Savanorių pr. 241 | Prekės neturime (0) | |
Aprašymas
30 cm (12") high-end woofer with a black cellulose diaphragm, large-format magnet arrangement and a massive aluminium diecast basket. Thanks to the multiple venting of the voice coil (pole piece hole, holes in the pole piece plate, cutouts in the aluminium diecast cone to vent the spider from behind) losses and flow noise are minimised. The combination of the voice coil carrier made of capton and the large 65 mm voice coil allow extremely high volume levels.
Rated power 300 W
Frequency response fu–4000 Hz
(fu: Lower cut-off frequency depending on cabinet)
Excursion limit +/-16 mm
Resonance frequency fs 25 Hz
Magnetic induction 1.1 T
Magnetic flux 1800 µWb
Height of front pole-plate 8 mm
Voice coil diameter 65 mm
Height of winding 23 mm

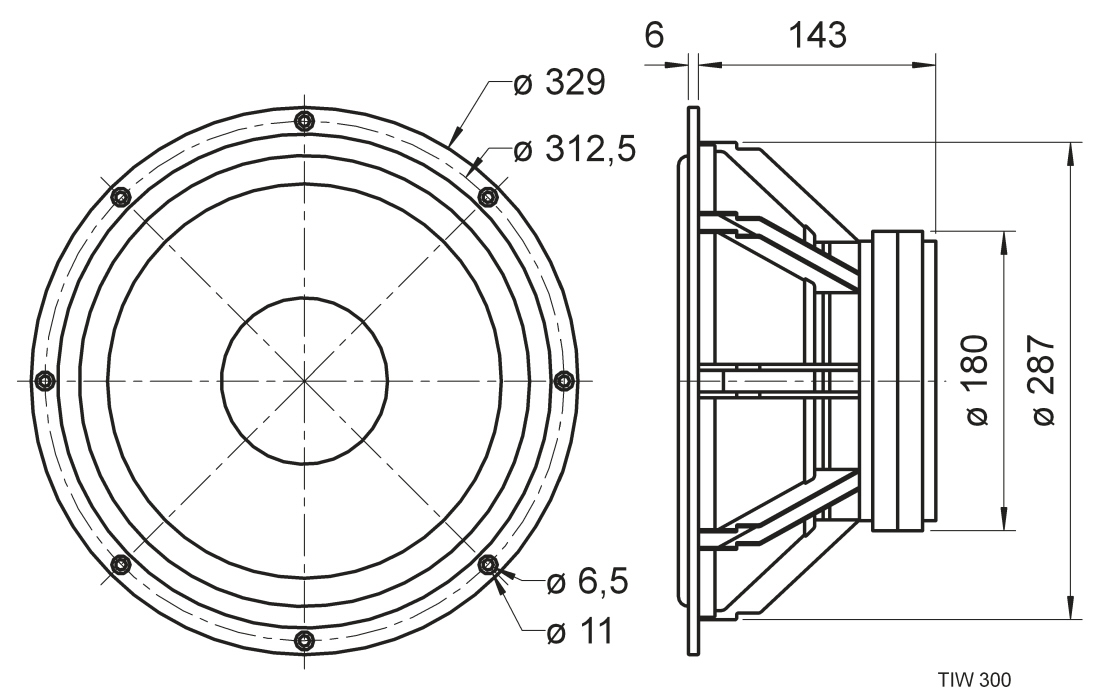

Cutout diameter 288 mm
D.C. resistance Rdc 5.4 Ohm
Mechanical Q factor Qms 4.59
Electrical Q factor Qes 0.30
Total Q factor Qts 0.28
Equivalent volume Vas 160 l
Effective piston area Sd 510 cm²
Dynamically moved mass Mms 92 g
Force factor Bxl 16.5 Tm
Inductance of the voice coil L 1.7 mH
