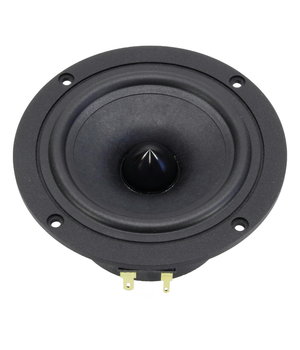

FULLRANGE SPEAKER 10cm B100 6 Om, Visaton
Код GAVSPB100- Производитель VISATON
- ID код 1263
- Вес 765.00g
Цена Eshop: 119,90 €
| Количество: | 2+ | 4+ |
| Цена: | 113,91 | 110,31 |
Минимум заказа: 1 Кратность: 1
Количество
| Расположение товара: | ||
|---|---|---|
| Центральный склад в Каунасе | Нет товара (0) | |
| Магазин в Вильнюсе | Товар есть (2) | |
| Магазин в Каунасе | Товар есть (2) | |
Описание товара
10 cm (4") high-end full-range loudspeaker with excellent balanced response characteristics and slightly increasing high-range for a pleasant sound even outside of 0-axis. High efficiency with low distortion are just some of the qualities of this speaker.
- Cm 1.28 mm/N
- Rated power 30 W
- Maximum linear displacement +/- 1.6 mm
- Excursion limit +/- 7.0 mm
- Resonance frequency fs 75 Hz
- Magnetic induction 1.29 T
- Magnetic flux 316 µWb
- Height of front pole-plate 3 mm0
- Voice coil diameter 26 mm
- Height of winding 6.3 mm
- Cutout diameter 101 mm
- D.C. resistance Rdc 5.8 Ohm
- Mechanical Q factor Qms 10.13
- Electrical Q factor Qes 0.54
- Total Q factor Qts 0.52
- Equivalent volume Vas 5.27 l
- Effective piston area Sd 54.1 cm²
- Dynamically moved mass Mms 3.2 g
- Force factor Bxl 4.1 Tm
- Inductance of the voice coil L 0.36 mH
- Connections 4.8 x 0.8 mm (+) / 2.8 x 0.8 mm (−)
