DIY Ultrasonic Distance Measurement Module with Enclosure
Code ABHCSR05- Weight 115.00g
E-shop price: 9,80 €
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (1) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (1) | |
Description

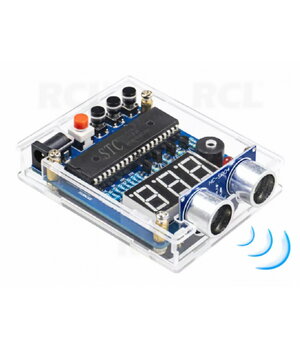

Ultrasonic Distance Measuring Device
The ultrasonic distance measuring device is based on an STC89C52 microcontroller and incorporates an HC-SR04 ultrasonic sensor, a 3-digit LED display (Nixie-style), push buttons, and an active buzzer.
Features
- Button functions (from left to right): −, +, and SET.
- Microcontroller: STC89C52.
- Adjustable alarm distance. Press the SET button and use the + or − buttons to modify the alarm threshold. Settings are retained after power-off.
- When the measured distance is lower than the preset alarm distance, the buzzer is activated.
- Measuring range: 5 cm to 4 m.
- Suitable for use as an automotive parking sensor.
- Provides a wide measuring range, stable performance, and simple operation. Ready for use immediately after power-up.
Electrical Specifications
- Supply voltage: DC 4.5–5.5 V
- PCB dimensions: 60 × 70 mm
- Overall dimensions with sensor: approximately 60 × 90 × 30 mm

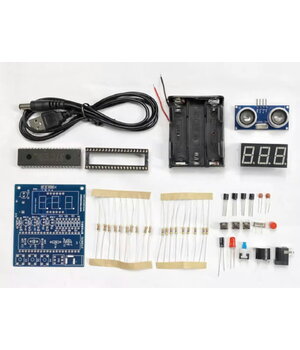

DIY Kit Contents
| Component | Qty. |
|---|---|
| PCB | 1 |
| HC-SR04 Ultrasonic Distance Sensor Module | 1 |
| 0.56" 3-digit LED Display | 1 |
| 40-pin IC Socket | 1 |
| STC89C52 Microcontroller (Pre-programmed) | 1 |
| DC005 Power Jack | 1 |
| USB to DC005 Power Cable | 1 |
| 3 × AA Battery Holder | 1 |
| 5 V Active Buzzer | 1 |
| 5 mm Red LED | 1 |
| 8 × 8 mm Self-locking Switch | 1 |
| 8 × 8 mm Switch Cap | 1 |
| 6 × 6 × 12 mm Tactile Push Button | 3 |
| 1 kΩ Resistor | 9 |
| 4.7 kΩ Resistor | 7 |
| 9012 Transistor | 4 |
| 22 pF Ceramic Capacitor | 3 |
| 12 MHz Crystal Oscillator | 1 |
| 10 µF Electrolytic Capacitor | 1 |
