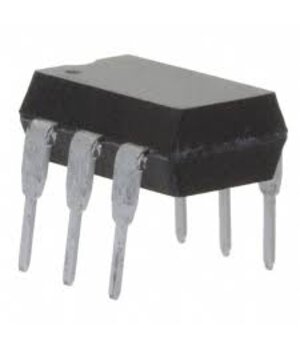

Optron IL250 – optical isolatorIL250 is an optical isolator (optron) with a phototransistor output, designed for AC and DC signal transmission, ensuring galvanic isolation between input and output circuits. The component is widely used in control, measurement, automation, and industrial electronic systems where reliable electrical isolation is required.

The dual-sided LED input allows the optocoupler to be used for both AC and DC signals without additional smoothing.

Technical characteristics* Type: optical isolator (optocoupler) * Model: IL250 * Input: dual-sided LED (AC/DC) * Output: NPN phototransistor with base output * Isolation voltage (VISO): up to 5300 Vrms * Current transfer ratio (CTR): ≥ 50% (IF = 10 mA) * Maximum collector-emitter voltage (VCEO): 30 V * Maximum LED input current (IF): 60 mA * Typical LED voltage drop: 1.2–1.5 V * Collector-emitter saturation voltage (VCE(sat)): ≤ 0.4 V * Maximum dissipated power: approximately 400 mW * Operating temperature: −55 °C to +100 °C * Storage temperature: −55 °C to +150 °C * Package type: DIP-6 * Mounting type: Through-Hole--------------------

Application* Galvanic isolation of signals * AC and DC signal detection * Industrial automation * PLC inputs * Power supply and control circuits
