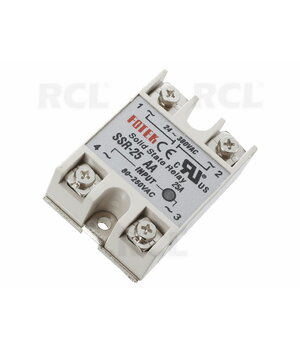

RELAY Solid-state 40A IN:80-250VAC OUT:AC24-380V SSR-25AA

Code RLSS2503
  • Weight 100.00g

E-shop price: 5,90 €

Amount: 5+ 10+
Price: 5,55 5,49
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (2)
Shop in Vilnius Item available (4)
Shop in Kaunas Item available (2)

Datasheet


Item description

Small volume ,small input power, non-contact,sparkless, noiseless, non-machinery wear, anti-vibration and the long life.

Main Application:

Industrial automation installment
Computer periphery connection
AC motor control
Automatic fire control and security system
Street light,signal light,traffic light,etc

Specification:

  • AC Control AC
  • Input voltage: 80-250VAC
  • Output current: 40A
  • Control current: 12Ma
  • Load voltage: 24-380VAC
  • On-state voltage: ≤1.5V
  • One-off Time: ≤10ms
  • Off leakage Current: ≤4mA
  • Size: 60x45x23mm
