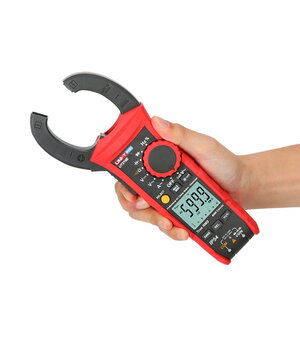

Professional AC/DC Clamp Meter UNI-T UT219DS, True RMS, 600 A, CAT IV 600 V, IP54

UNI-T UT219DS Professional AC/DC Clamp Meter, True RMS, 600 A, CAT IV 600 V, IP54

The UNI-T UT219DS is a professional True RMS AC/DC clamp meter designed for electrical installations, industrial equipment, HVAC/R systems, motors and general electrical maintenance. It measures up to 600 A AC/DC current with the clamp, up to 1000 V AC/DC voltage, resistance, capacitance, frequency, temperature and microamp current, and also provides 3-phase sequence testing. Additional UT219DS functions include a low-pass filter, INRUSH current measurement, AC+DC modes and simultaneous V+A dual-display measurement.

Key specifications: True RMS • 600 A AC/DC • 1000 V AC/DC • 6000-count display • 33 mm jaw • CAT III 1000 V / CAT IV 600 V • IP54

Main advantages

• True RMS measurement – provides more reliable readings of non-sinusoidal AC voltage and current waveforms commonly encountered in electronic loads and motor-control systems.
• Up to 600 A AC/DC clamp measurement – current can be measured without disconnecting the conductor, using 60.00 A and 600.0 A ranges.
• AC+DC measurement modes – allow the combined AC and DC components of voltage and current to be evaluated.
• Low-pass filter (LPF) – 1 kHz, –3 dB filtering helps reduce high-frequency interference when measuring variable-frequency drive systems.
• INRUSH measurement – captures motor and other load starting current.
• V+A dual display – allows voltage and current to be monitored simultaneously.
• 3-phase motor sequence test – helps determine three-phase supply sequence and expected motor rotation direction.
• LoZ voltage mode – a low-input-impedance voltage mode helps suppress misleading induced or “ghost” voltages.
• 2000 µA AC/DC range – enables low-current measurements through the input terminals, useful for applications such as flame-sensing circuits.
• Rugged design – IP54 protection, 2 m drop testing and CAT III 1000 V / CAT IV 600 V measurement categories support professional field use.

Applications

UNI-T positions the UT219DS for professional electricians, HVAC/R technicians and motor-service technicians. It is suitable for electrical installation, distribution-system, motor, pump, compressor, variable-frequency-drive and other industrial or commercial electrical maintenance and troubleshooting tasks.

In addition to AC/DC current and voltage, the meter can measure resistance, capacitance, frequency, duty cycle and temperature and can perform diode and continuity tests. MAX/MIN, REL, ZERO and Data Hold functions support troubleshooting and comparative measurements.

Compatibility and limitations

• Clamp-current measurement must be performed on one conductor at a time.
• Maximum jaw opening is 33 mm.
• The 1000 V measurement range does not mean CAT IV 1000 V. The instrument is rated CAT III 1000 V / CAT IV 600 V.
• The 2000 µA AC/DC ranges use the test-lead input terminals rather than the clamp.
• The meter supports temperature measurement up to 1000 °C, but the usable range is also limited by the rating of the connected temperature probe.
• The dedicated frequency-measurement range must not be confused with AC bandwidth: AC current frequency response is 40–400 Hz, while AC voltage response extends to 1 kHz.
• LoZ AC voltage measurement is specified up to 600 V.

Technical specifications

Parameter	Value
Instrument type	Professional digital AC/DC clamp meter
Measurement technology	True RMS
Display count	6000 counts
AC clamp current	60.00 A / 600.0 A
AC current resolution	0.01 A / 0.1 A
AC current accuracy, 40–100 Hz	±(1.8% + 6 digits)
AC current accuracy, 100–400 Hz	±(3.5% + 6 digits)
DC clamp current	60.00 A / 600.0 A
DC current resolution	0.01 A / 0.1 A
DC current accuracy	±(1.8% + 6 digits)
AC+DC current	60.00 A / 600.0 A
AC+DC current accuracy, 40–100 Hz	±(3.0% + 6 digits)
AC+DC current accuracy, 100–400 Hz	±(4.5% + 6 digits)
INRUSH current	60 A / 600 A ranges; ±10%
DC microcurrent	Up to 2000 µA; 1 µA resolution; ±(0.9% + 6)
AC microcurrent	Up to 2000 µA; 1 µA resolution; ±(1.5% + 6)
AC voltage ranges	6 V / 60 V / 600 V / 1000 V
AC voltage resolution	0.001 V / 0.01 V / 0.1 V / 1 V
AC voltage accuracy	±(1.0% + 6)
AC voltage frequency response	40 Hz–1 kHz
DC voltage ranges	6 V / 60 V / 600 V / 1000 V
DC voltage resolution	0.001 V / 0.01 V / 0.1 V / 1 V
DC voltage accuracy	6 V: ±(0.6% + 3); 60–1000 V: ±(0.9% + 6)
AC+DC voltage ranges	6 V / 60 V / 600 V / 1000 V
AC+DC voltage response	40–400 Hz
AC+DC voltage accuracy	±(2.0% + 6)
LoZ ACV	Up to 600 V; 0.1 V resolution; ±(2.5% + 6)
LoZ frequency response	40 Hz–1 kHz
Resistance ranges	600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ
Resistance, 600 Ω	0.1 Ω; ±(1.3% + 3)
Resistance, 6–600 kΩ	1 Ω / 10 Ω / 100 Ω; ±(1.0% + 3)
Resistance, 6 MΩ	1 kΩ; ±(1.6% + 4)
Resistance, 60 MΩ	10 kΩ; ±(2.6% + 7)
Capacitance ranges	60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF / 60 mF
Capacitance accuracy up to 600 µF	±(4.0% + 7)
Capacitance accuracy, 6 mF and 60 mF	±10%
Frequency measurement	600 Hz–40 MHz
Frequency accuracy	±(0.1% + 6)
Duty cycle	0.1–99.9%
Duty-cycle resolution	0.1%
Duty-cycle accuracy	±(2.6% + 7)
Temperature	–40…1000 °C
Temperature, –40…40 °C	1 °C; ±5 °C
Temperature, >40…400 °C	1 °C; ±(2.0% + 5 °C)
Temperature, >400…1000 °C	1 °C; ±(2.5% + 5 °C)
Diode test	Up to 3 V class PN junctions; 0.001 V resolution
Continuity test	Yes
3-phase sequence test	AC 80–600 V
Low-pass filter	600 V range; 1 kHz, –3 dB
V+A simultaneous display	Yes
MAX/MIN	Yes
Data Hold	Yes
REL mode	Yes
ZERO mode	Yes
Auto/manual ranging	Yes
Auto power off	Yes
Automatic backlight	Yes
Measurement update rate	5 times/s
Analog bar graph	31 segments
Analog bar update rate	20 times/s
LCD	Dual display
LCD dimensions	35 × 31 mm
Jaw opening	33 mm
Input impedance	≥10 MΩ in main high-impedance voltage modes
Measurement category	CAT III 1000 V / CAT IV 600 V
Ingress protection	IP54
Drop test	2 m
Pollution degree	2
Certifications	CE, UKCA, cETLus, GS
Accuracy reference conditions	18–28 °C, ≤75% RH
Temperature coefficient	0.1 × specified accuracy / °C outside the specified temperature interval
Storage temperature	–20…60 °C
Storage humidity	<80% RH
Power supply	3 × 1.5 V R03 (AAA) batteries
Dimensions	234.6 × 82 × 47 mm
Net weight	310 g

Construction and controls

The UT219DS uses a 33 mm clamp jaw and a dual 6000-count LCD. Measurement functions are selected with a rotary switch and dedicated function buttons. The primary display updates up to 5 times per second, while the 31-segment analog bar graph updates up to 20 times per second for easier observation of changing signals.

Automatic backlighting improves readability in changing ambient light, while Data Hold, MAX/MIN, REL and ZERO functions support recording and comparative measurements.

Important safety and operating notes

• Do not exceed the CAT III 1000 V / CAT IV 600 V limits and use appropriately rated test leads.
• Clamp only one current-carrying conductor at a time and position it near the centre of the jaws for best accuracy.
• De-energize the circuit and discharge capacitors before resistance, capacitance, diode or continuity measurements.
• Use the ZERO function before DC current measurements if a residual offset is displayed.
• The effective temperature range may be limited by the specification of the connected K-type temperature probe.
• IP54 protection does not permit immersion in water.

Package contents

• UNI-T UT219DS clamp meter
• test leads
• point-contact temperature probe
• carrying/storage bag
• 3 × 1.5 V R03 (AAA) batteries
