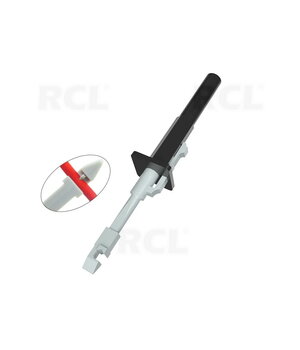

Test Hook Clip Wire Piercing Probe with 4mm socket, black
Code IIMG84J- Weight 12.00g
E-shop price: 4,85 €
| Amount: | 3+ | 5+ |
| Price: | 4,41 | 3,88 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (1) | |
| Shop in Vilnius | Item available (2) | |
| Shop in Kaunas | Item available (1) | |
Description
It can easily puncture the cable sheath for testing without cutting the cable sheath. It is widely used in cable repair, power testing, industrial field testing and other cable non-destructive testing.

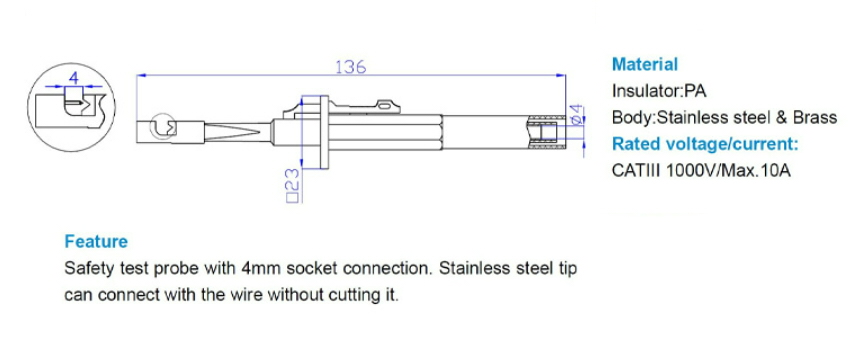

Parameters:
Metal material: main body copper, stainless steel
Surface treatment: nickel plating
Molded shell material: nylon
Electrical parameters: CATIII 1000V/Max.10A

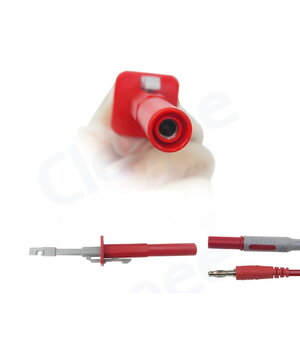

Connection method: comes with 4 mm socket
Use:

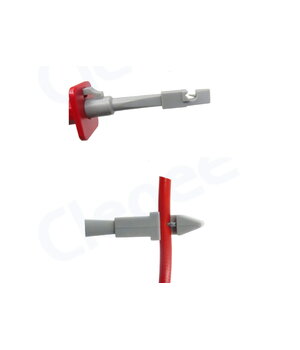

- press the end of the test tool, the test cable (about 4mm in diameter) into the test tool
-release the button and test tools within the very fine probe can pierce the cable jacket direct and conductor, thus to cable signal for nondestructive testing.
-unique V type line groove design, to ensure that the position of the barbed wire is in the middle of the cable, the efficiency is very high.
- after testing, release the button to remove the wire, cable sheath unscathed
