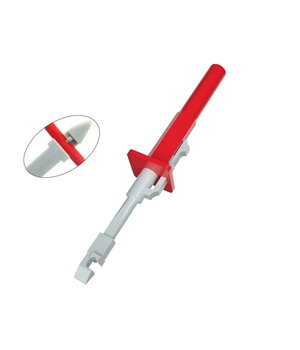

Test Hook Clip Wire Piercing Probe with 4mm socket, redCode IIMG84R
- Weight 12.00g
E-shop price: 4,85 €
|Central warehouse in Kaunas||Item available (4)|
|Shop in Vilnius||Item available (2)|
|Shop in Kaunas||Item available (2)|
It can easily puncture the cable sheath for testing without cutting the cable sheath. It is widely used in cable repair, power testing, industrial field testing and other cable non-destructive testing.

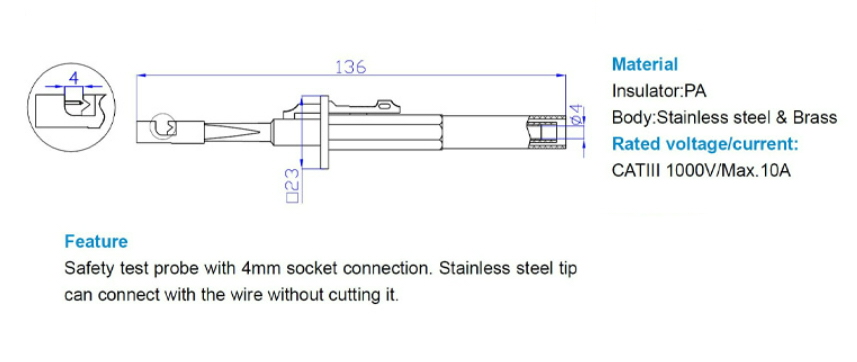

Metal material: main body copper, stainless steel
Surface treatment: nickel plating
Molded shell material: nylon
Electrical parameters: CATIII 1000V/Max.10A

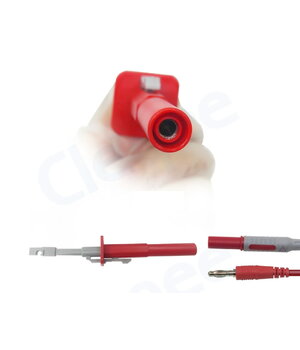

Connection method: comes with 4 mm socket

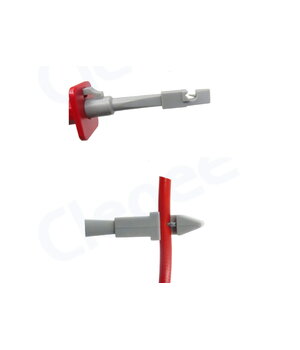

- press the end of the test tool, the test cable (about 4mm in diameter) into the test tool
-release the button and test tools within the very fine probe can pierce the cable jacket direct and conductor, thus to cable signal for nondestructive testing.
-unique V type line groove design, to ensure that the position of the barbed wire is in the middle of the cable, the efficiency is very high.
- after testing, release the button to remove the wire, cable sheath unscathed
