RELAY 5V 1A SPDT RAYEX 12.5x10x7.5mm
Code RL0501R- Manufacturer RAYEX ELECTRONICS
- Weight 3.00g
E-shop price: 1,90 €
| Amount: | 5+ | 10+ |
| Price: | 1,71 | 1,60 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (9) | |
| Shop in Kaunas | Item available (7) | |
Item description
- Contacts configuration SPDT
- Rated coil voltage 5V DC
- AC contacts rating @R (at resistance load) 0.5A / 125V AC
- DC contacts rating @R (at resistance load) 1A / 24V DC
- Contact current max. 1A
- Switched voltage max 24V DC, max 125V AC
- Relay variant subminiature
- Mounting PCB
- Coil resistance 167Ω
- Operate time 4ms

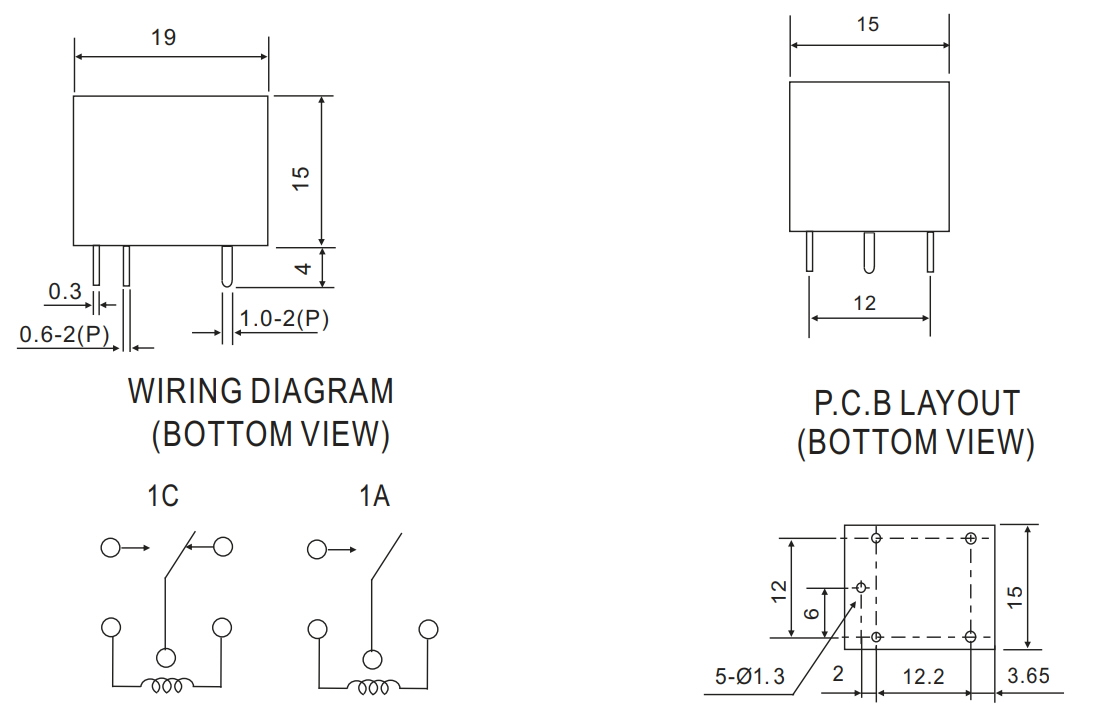

- Body dimensions 12.4 x 7.4 x 9.9mm
- Release time 3ms
- Operating temperature -25...55°C
- Relay series RSY
- Contact resistance 100mΩ
- Contact material AgCdO
- Terminal pitch 2.54mm
- Coil current 30mA
