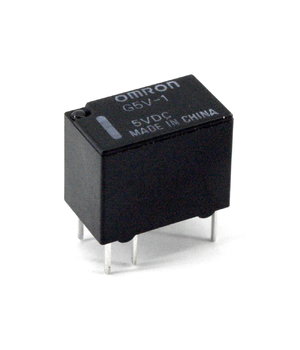

RELAY G5V1-05 5V 150mW , 1A / 24V DC 0.5A / 125V AC, (SPDT) OMRON
Code RLG5V105- Manufacturer OMRON
- ID code G5V-1 5VDC
- Weight 3.00g
E-shop price: 1,90 €
| Amount: | 5+ | 10+ |
| Price: | 1,71 | 1,59 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (11) | |
| Shop in Vilnius | Item available (10) | |
| Shop in Kaunas | Item available (10) | |
Item description
Contacts configuration : SPDT
AC contacts rating: 0.5A / 125V AC
DC contacts rating: 1A / 24V DC
Contact current max.: 1A
Switched voltage: max. 60V DC, max. 125V AC
Mounting: PCB
Coil resistance: 166.7Ω
Coil power consumption: 150mW
Coil current: 30mA
Operating temperature: -30...70°C
Contact resistance: 100mΩ
Terminal pitch: 2.54mm

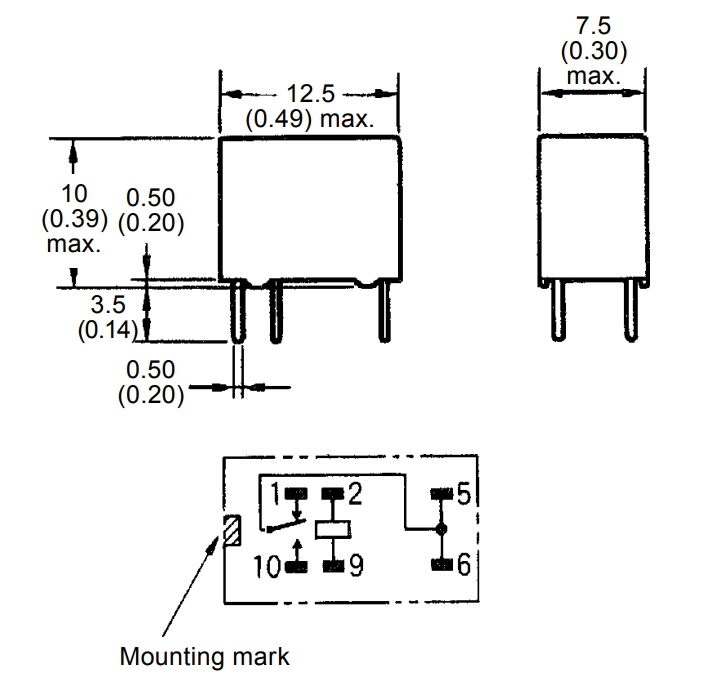

Body dimensions: 12.5x7.5x10mm
